Digitization of a Large Agricultural Pump House for Canal Water Distribution

This case study presents the digital transformation of a large-scale agricultural pump house responsible for lifting and distributing water from a river reservoir to irrigation canals serving extensive agricultural land. The project focused on modernizing conventional pumping operations through Industrial IoT (IIoT), SCADA integration, remote monitoring, predictive maintenance, energy optimization, and cloud-based analytics.

The digitization initiative enabled real-time visibility of pump operations, reduction in downtime, improved water distribution efficiency, optimized power consumption, predictive fault detection, and centralized control across multiple pumping stations

Start with One Machine Request a Demo
The implemented solution resulted in
25% reduction in unplanned downtime.
18% reduction in energy consumption.
30% improvement in maintenance response time.
Real-time canal water flow monitoring.
Remote operation and automated reporting.
Increased irrigation reliability for farmers.


Introduction

Agriculture heavily depends on reliable irrigation infrastructure, especially in regions where rainfall is seasonal or insufficient. Large pump houses are commonly used to transfer water from rivers, reservoirs, or dams into irrigation canals supplying agricultural lands.

Traditional pump houses often operate using manual systems with limited monitoring capabilities, leading to:

High energy consumption.
Frequent motor failures.
Inefficient water distribution.
Delayed fault detection.
Poor maintenance planning.
Water leakage and overflow.
Lack of operational transparency.
To overcome these challenges, a comprehensive digitization strategy was implemented for a large agricultural pump house.


Background of the Pump House

Infrastructure
The pump house consisted of
8 High Capacity Vertical Turbine Pumps.
6.6 kV High Voltage Motors.
Multiple canal distribution gates.
Transformer yard and MCC panels.
Water intake structure.
Diesel generator backup system.
Manual control room operations.


Operational Capacity

Parameter Value
Total Pump Capacity 120 MLD
Number of Pumps 8
Motor Rating 1 MW each
Canal Length Supported 150 km
Agricultural Area Served 45,000 Acres
Operating Hours 18 – 22 Hours/Day


Challenges Before Digitization

Operational Challenges
Manual Monitoring
Pressure gauges.
Motor temperatures.
Flow meters.
Vibration readings.
Energy meters.
Unplanned Downtime
Motor failures and bearing damages frequently caused irrigation interruptions.
High Energy Consumption
Pumps operated continuously without optimization based on demand.
Water Distribution Inefficiency
Canal overflow and inconsistent water supply impacted agricultural productivity.
Maintenance Issues
Maintenance was reactive rather than predictive.
Lack of Historical Data
- Pump runtime.
- Energy trends.
- Maintenance records.
- Water flow history.


Objectives of Digitization

Enable real-time monitoring of all pumps and motors.
Improve irrigation water management.
Reduce power consumption.
Minimize equipment failures.
Introduce predictive maintenance.
Enable remote monitoring and control.
Improve reporting and analytics.
Enhance operational safety.
Digitize maintenance workflow.
Create a scalable smart irrigation infrastructure.

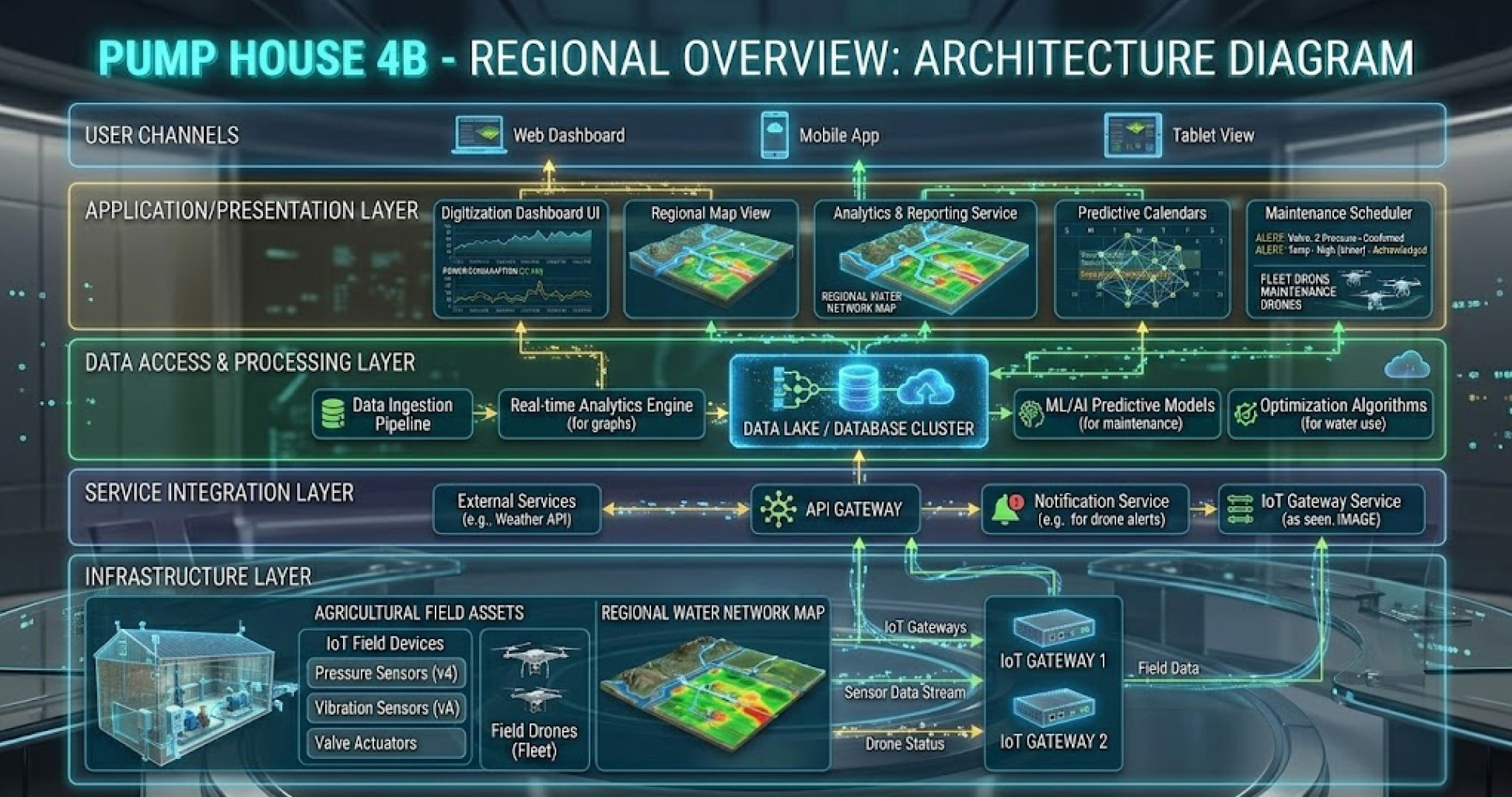

Digitization Architecture
IoT Sensors.
PLC-Based Automation.
SCADA System.
Industrial Gateways.
Cloud Platform.
Mobile Dashboard.
AI-Based Analytics.
Central Monitoring Station.


Solution Components



Electrical Sensors
Voltage Monitoring.
Current Monitoring.
Power Factor Measurement.
Energy Consumption Analysis.
Harmonic Monitoring.


Mechanical Sensors

Vibration Monitoring.
Bearing Temperature.
Shaft Alignment.
Motor Temperature.
Pump Health Analysis.


Hydraulic Sensors
Flow Measurement.
Water Level Monitoring.
Pressure Monitoring.
Canal Gate Position Monitoring.


PLC and Automation Layer

Automatic pump sequencing.
Interlock protection.
Emergency shutdown.
Canal gate automation.
Load balancing.
Dry run protection.
Overload management.


SCADA Integration
Real-time monitoring.
Alarm management.
Trend analysis.
Historical data logging.
Operator dashboard.
Remote operation.
Event logging.

Key SCADA Features

Feature Description
Live Pump Status Running/Stopped/Fault
Flow Monitoring Canal flow visualization
Energy Dashboard Power consumption trends
Alarm System SMS and email alerts
Historical Reports Performance analytics



Industrial IoT Gateway
Industrial gateways collected data from
PLCs
Energy meters
Sensors
Variable Frequency Drives (VFDs)
Protocols used
Modbus TCP/IP
MQTT
OPC - UA
Ethernet / IP


Cloud Platform Integration
Cloud integration enabled
Remote monitoring
Data storage
AI analytics
Mobile application access
Multi-site management
Predictive analytics

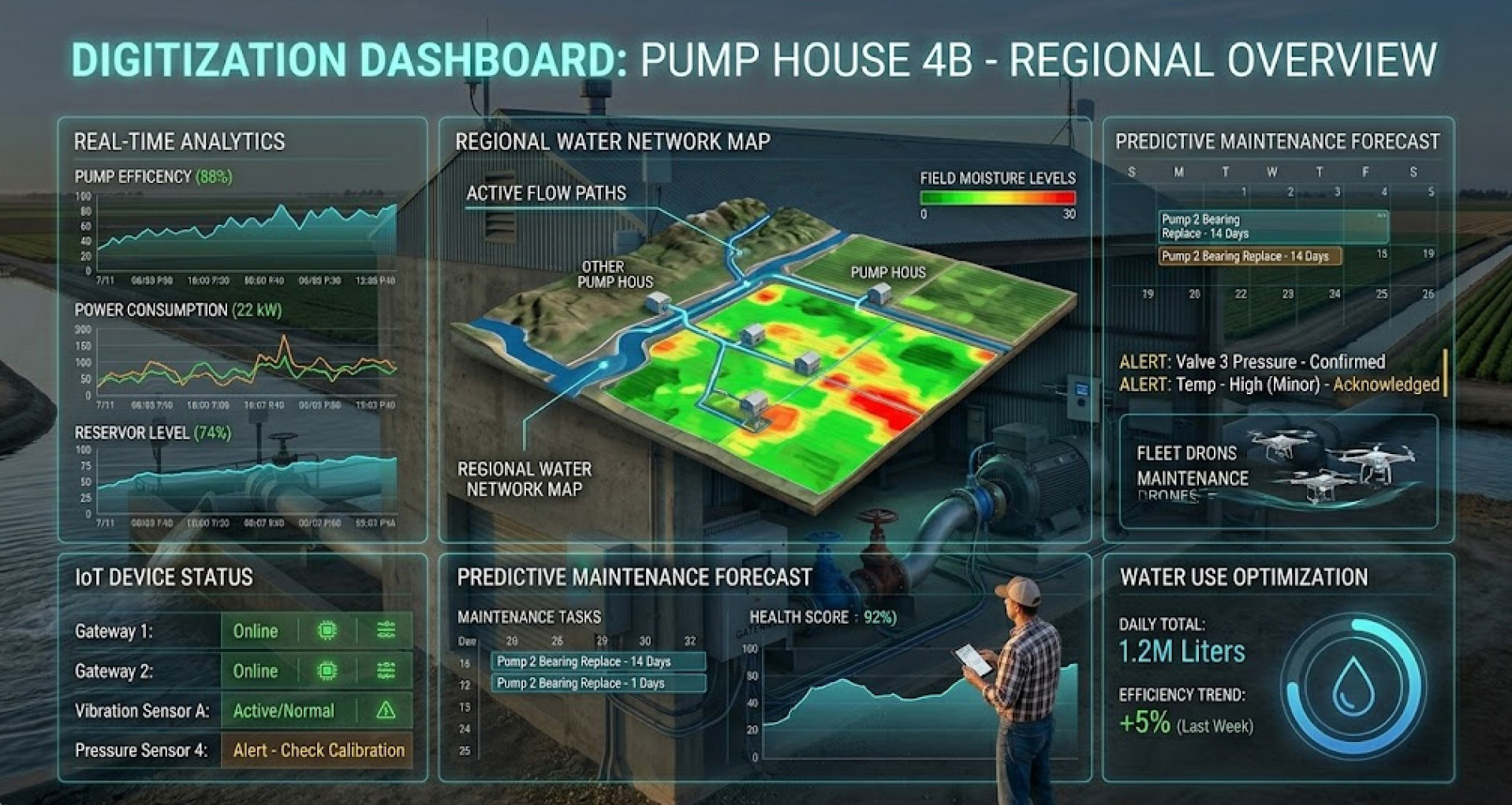

Cloud Dashboard Features
Pump health score
Water flow analytics
Energy efficiency KPI
Maintenance alerts
AI-based fault prediction
Operational reports

Remote Monitoring System

Central Monitoring Center
A centralized monitoring center was established to monitor
All pump stations.
Canal flow conditions.
Power consumption.
Equipment health.
Alarm conditions.
Mobile Application
A mobile application allowed field engineers to
View pump status.
Receive alarms.
Approve maintenance work.
Monitor canal water flow.
Access historical reports.

Predictive Maintenance Implementation
AI-Based Analytics - Machine learning models analyzed
Vibration signatures.
Motor temperature trends.
Bearing condition.
Power anomalies.
Flow inconsistencies.
Predictive Alerts - The system generated alerts for
Bearing failure prediction.
Cavitation detection.
Overheating motors.
Abnormal vibration.
Dry running conditions.

Energy Optimization Strategy

Variable Frequency Drives (VFD)
VFDs were introduced to
Optimize pump speed.
Reduce peak current.
Improve efficiency.
Minimize hydraulic shock.
Smart Pump Scheduling
AI-based scheduling optimized
Pump operation sequence.
Irrigation timing.
Power demand management.
Water distribution balance.
Peak Load Reduction
The system avoided simultaneous starting of large motors, reducing
Inrush current.
Transformer stress.
Power penalties.



Water Management Improvements
Canal Flow Optimization - Real-time canal flow monitoring improved
Water allocation.
Irrigation consistency.
Overflow prevention.
Water conservation.
Smart Gate Control - Automated canal gates adjusted based on
Water demand.
Canal level.
Seasonal requirements.
Agricultural schedules.

Cybersecurity Measures

The project included industrial cybersecurity measures
VPN-based remote access.
Firewall protection.
Role-based access control.
Secure MQTT communication.
Encrypted cloud data transfer.
Network segmentation.
Implementation Phases

Phase 1: Assessment
Site survey.
Asset mapping.
Electrical audit.
Communication feasibility study.
Phase 2: Infrastructure Upgrade
Sensor installation.
PLC panel integration.
SCADA server setup.
Networking deployment.
Phase 3: Cloud Integration
IoT gateway configuration.
Cloud dashboard setup.
Database integration.
Phase 4: AI Analytics
Data collection.
Model training.
Predictive maintenance deployment.
Phase 5: Training & Handover
Operator training.
SOP preparation.
Maintenance training.

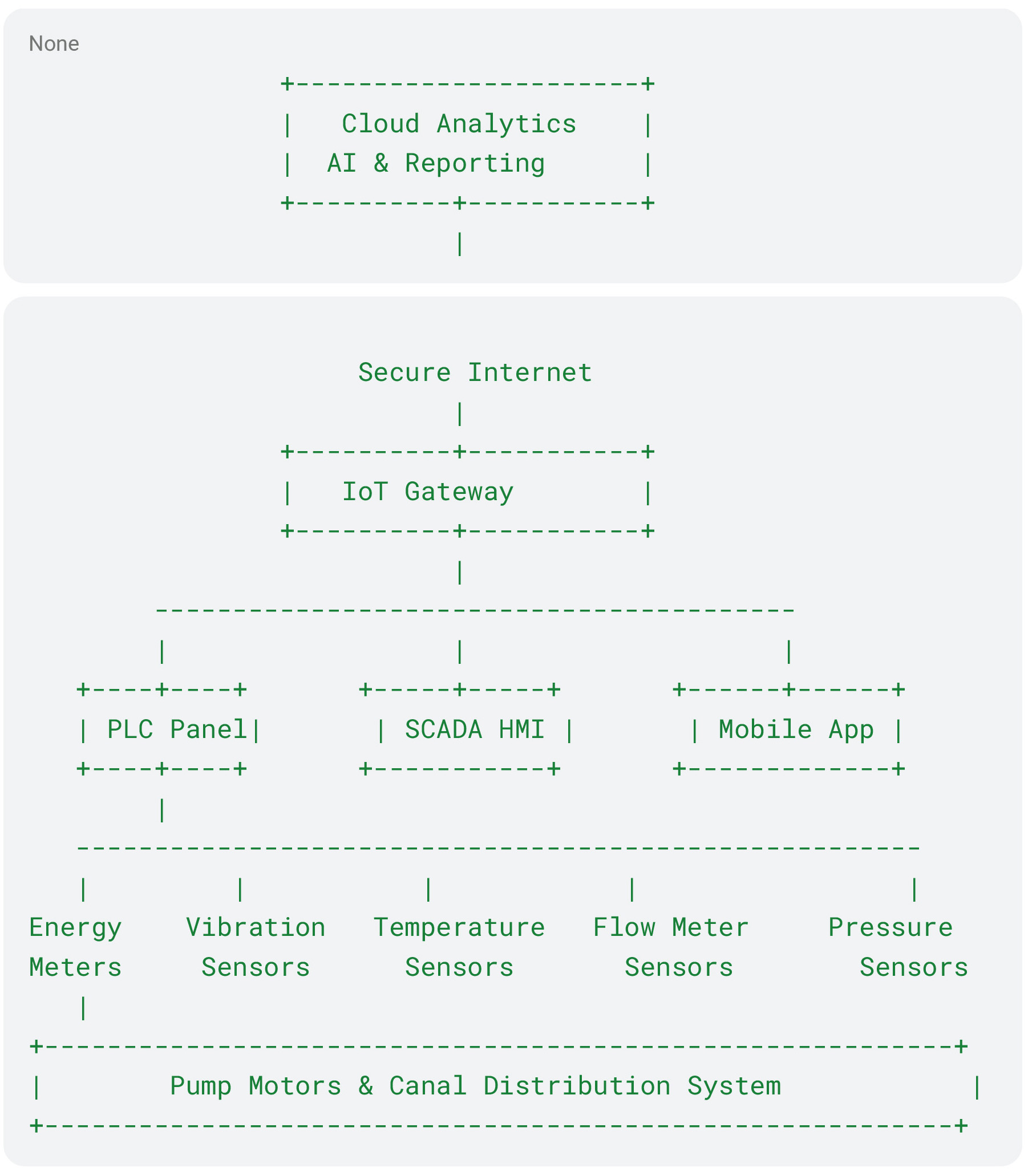

System Architecture Diagram (Conceptual)

Results and Outcomes

Operational Benefits

Parameter Before Digitization After Digitization
Downtime High Reduced by 25%
Energy Consumption High Reduced by 18%
Fault Detection Manual Real-Time
Maintenance Type Reactive Predictive
Reporting Manual Automated
Water Loss Significant Reduced



Financial Benefits

Annual Savings

Category Estimated Savings
Energy Savings ₹ 1.8 Crore
Reduced Downtime ₹ 75 Lakhs
Maintenance Optimization ₹ 40 Lakhs
Water Conservation ₹ 55 Lakhs

ROI

Parameter Value
Project Cost ₹ 6 Crore
Annual Savings ₹ 3.5 Crore
ROI Period Approximately 2 Years



Environmental Impact
Reduced power consumption.
Lower carbon emissions.
Efficient water utilization.
Reduced water wastage.
Sustainable irrigation management.


Key Technologies Used

ROI

Technology Purpose
IoT Sensors Real-time data acquisition
PLC Automation and control
SCADA Monitoring and visualization
MQTT Data communication
Cloud Platform Remote analytics
AI/ML Predictive maintenance
VFD Energy optimization
GIS Canal mapping



Challenges During Implementation
Integration Complexity
Legacy equipment required protocol converters and retrofitting.
Communication Reliability
Remote agricultural areas had limited network connectivity.
Operator Training
Extensive training was required for digital system adoption.
Data Calibration
Sensor calibration and validation required multiple iterations.

Lessons Learned
Predictive maintenance significantly reduces operational risk.
Real-time monitoring improves decision making.
Energy optimization creates major cost savings.
Cloud-based infrastructure improves scalability.
Proper training is critical for successful adoption.
Data quality directly impacts AI analytics performance.


Future Enhancements
Digital Twin implementation.
AI-based irrigation forecasting.
Drone-based canal inspection.
Satellite integration for crop analytics
Autonomous maintenance robots
Advanced cybersecurity monitoring
Solar-powered pumping optimization

Conclusion

The digitization of the large agricultural pump house transformed a traditional irrigation infrastructure into a smart, connected, and data-driven system. By integrating IoT, automation, SCADA, cloud analytics, and predictive maintenance technologies, the project significantly improved operational efficiency, reliability, and sustainability. The solution demonstrated how digital transformation can modernize critical agricultural infrastructure while improving water management, reducing operational costs, and supporting sustainable farming practices. This case study can serve as a reference model for future smart irrigation and water management projects across large agricultural regions.
