TAGXCAN® INDUSTRIAL GATEWAY

Overview

TagXcan® is an enterprise-grade Windows-based industrial communication gateway and telemetry platform developed by RDL Technologies. Engineered specifically for smart manufacturing, SCADA integration, and Industry 4.0 digitalization, TagXcan seamlessly bridges heterogeneous plant-floor PLCs, field devices, and instrumentation with modern enterprise IT databases, REST APIs, and Cloud MQTT brokers.

By supporting 8 native industrial communication protocols within a single unified engine, TagXcan eliminates proprietary vendor lock-in, enabling real-time centralized data collection, telemetry archiving, automated Excel reporting, and bidirectional API dispatching across shop-floor equipment.

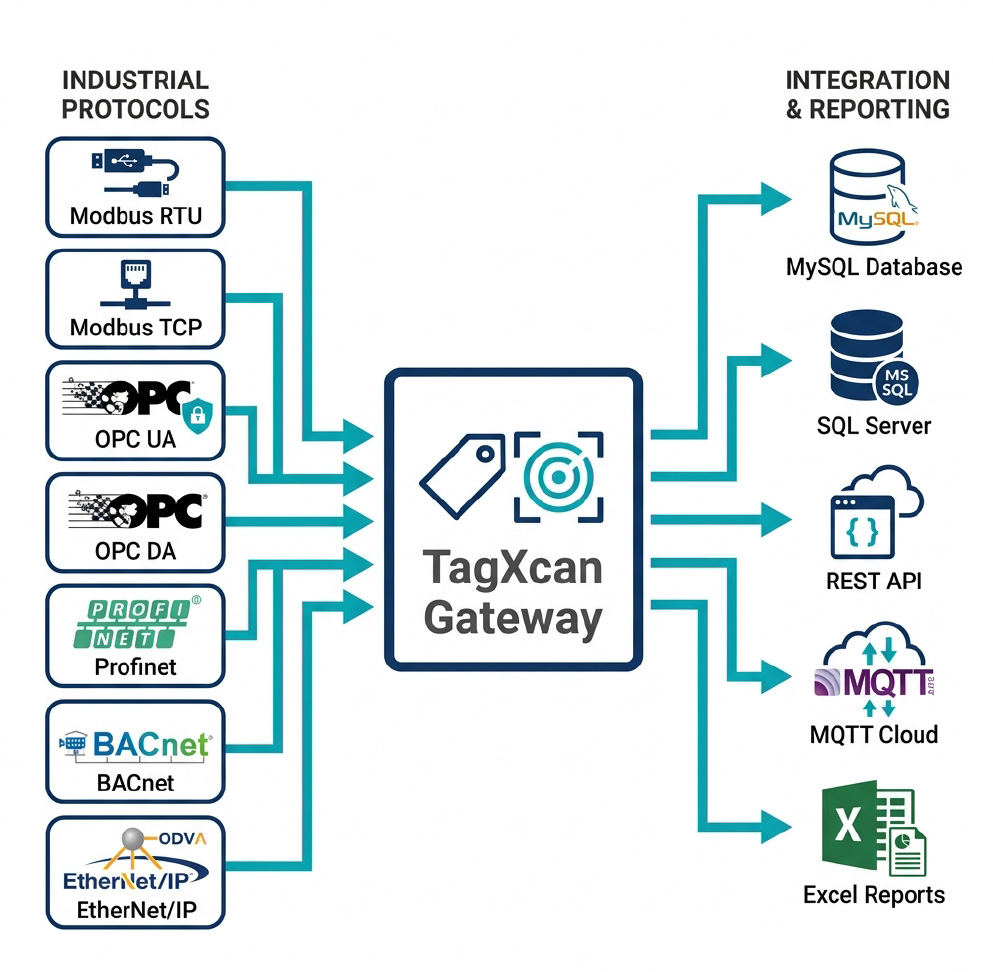

System Architecture Data Flow

Predictive energy analytics to reduce costs

TagXcan Unified Gateway Architecture — Field Ingestion to Enterprise Databases & Cloud Telemetry.

Key System Metrics

Protocols: 8 Native Field Drivers.
DB Support: MySQL & SQL Server.
Telemetry: REST API & MQTT Cloud.
OS Platform: Win 10 / Server 2016+.
Runtime: .NET 4.7.2 / 4.8 Framework.
Licensing: Hardware MAC Secured.



Key Core Capabilities

Multi-Protocol Polling Engine
High-throughput parallel data polling across serial (RS232/485) and Ethernet networks with millisecond scan cycles and customizable tag telemetry groups.

Dual Enterprise Database Logging
Built-in connectors for MySQL and Microsoft SQL Server. Features dynamic stored procedures (`GetApiTagTargets_Static`) for automatic tag-to-UOM schema mapping.
Secure Cloud & REST Telemetry
Outbound JSON payload dispatching to MQTT brokers and HTTP REST APIs, reinforced with X.509 certificates and TLS / SSL cryptographic standards.




Industrial Value Proposition

TagXcan® drastically reduces OT-to-IT integration cost and commissioning time by providing pre-built, tested protocol stacks for Siemens, Rockwell, Modbus, OPC UA, and BACnet devices out of the box


SUPPORTED INDUSTRIAL PROTOCOL SPECIFICATIONS

PROTOCOL ID PROTOCOL NAME INTERFACE TYPE TARGET DEVICES / HARDWARE COMPATIBILITY
Protocol 1 Modbus RTU Serial (RS-485 / RS-232) Energy Meters, Temperature Controllers, VFDs, Legacy Sensors
Protocol 2 Modbus TCP Ethernet (TCP/IP Port 502) Networked Modbus IO Modules, Power Monitors, Gateway Devices
Protocol 3 OPC UA TCP/IP (IEC 62541) Modern Industry 4.0 PLCs, Smart Sensors, Enterprise Edge Servers
Protocol 4 OPC DA COM / DCOM (Windows) Legacy Windows SCADA Systems, Wonderware, iFIX, RSView
Protocol 5 Profinet Industrial Ethernet Siemens SIMATIC S7-1200 / S7-1500 / S7-300 / ET200 IOs
Protocol 6 TCP Tag Group Custom Ethernet Socket Custom Embedded Controllers, Barcode Scanners, RFID Readers
Protocol 7 BACnet BACnet / IP & MS/TP Building Automation Systems, Chiller Plants, HVAC Controllers
Protocol 8 EtherNet / IP CIP Ethernet (libplctag) Allen-Bradley ControlLogix, CompactLogix, Micro800 PLCs





Software Features & Integrated Utilities

DA Server Tag Browser
Includes a dedicated GUI node browser (`OPCDATagBrowser.vb`) for auto-discovering items, groups, and tags directly from OPC DA servers across Windows DCOM nodes.
Embedded Kestrel Web API Server
Integrates Microsoft ASP.NET Core Kestrel web server (`APIForm.vb`) to serve local REST endpoints for external MES and ERP software queries
Automated Excel Reporting Engine
Integrated EPPlus (.xlsx) report generation engine for automatic schedule-based logging, shift summary calculations, and telemetry exporting.
Cryptographic Security & Hardware Licensing
TLS 1.2/1.3 encryption with custom CA certificate loading, combined with unique physical MAC address hardware locking (`NetworkInterface`) for security.


Technical Specification Matrix

Parameter Technical Specification / Standard
Operating System Microsoft Windows 10 (32-bit / 64-bit), Windows 11, Windows Server 2016 / 2019 / 2022.
Software Architecture Microsoft .NET Framework 4.7.2 / 4.8 (Windows Forms Executable).
Database Support MySQL Server 8.0+ (via `MySql.Data` v9.3.0) and Microsoft SQL Server (2012 to 2022).
OPC UA Compliance OPC Foundation IEC 62541 compliant, powered by `Opc.UaFx.Advanced` (v2.42.0.1).
EtherNet / IP Stack Industrial CIP Protocol supported via `libplctag` (v1.5.2) native driver engine.
BACnet Engine BACnet/IP (v3.0.1) supporting Analog/Binary Input, Output, and Value objects.
Serial Communications Configurable Baud Rates (1200 to 115200 bps), Parity (None, Even, Odd), Stop Bits (1, 2), Data Bits (7, 8).
Cloud Telemetry Formats JSON Payloads over HTTP POST / REST APIs and MQTT (via `M2Mqtt`).
Excel Export Engine EPPlus OpenXML Spreadsheet Library (v7.2.2).
Security & Encryption TLS 1.2 / 1.3, X.509 Certificates, BouncyCastle Cryptography (v2.5.1).




INDUSTRIAL APPLICATIONS & USE CASES

Smart Factory & OEE Monitoring
Acquire real-time cycle times, piece counts, machine alarms, and downtime parameters from heterogeneous PLCs on automotive and electronics assembly lines.
Energy & Utility Management Systems (EMS)
Collect energy consumption metrics from Modbus RTU/TCP power meters and transmit them directly to central SQL databases for carbon footprint auditing.
Building Automation & HVAC Integration
Monitor chiller plants, air handling units (AHUs), and environmental sensors via BACnet/IP to optimize facility climate control and operational efficiency.
Enterprise IT/OT Integration & Cloud Telemetry
Bridge isolated shop-floor networks directly with cloud platforms (AWS, Azure, private MQTT) for centralized enterprise dashboarding and predictive analytics.

Key Deployment Advantages

Vendor Lock-in
Unifies Siemens, Allen-Bradley, Modbus, OPC, and BACnet hardware on a single platform.
Rapid Commissioning
Pre-configured stored procedures and schema templates accelerate OT-to-IT deployment.
Scalable Architecture
Supports thousands of concurrent tag channels with customizable polling groups and scan rates.
